2021 红明谷 Misc Writeup

本文最后更新于:2021年9月12日 晚上

2021 “红明谷”杯数据安全大赛 Misc Writeup

2021 红明谷 Misc Writeup

inputMonitor

  • 题目描述:Akira在某次取证的过程中,在桌面找到了一个奇怪的文件,但是除此之外好像没有找到什么有价值的情报,很多的数据都被抹干净了,而且这个用户似乎根本就没装什么第三方的软件。Akira还粗心的只拷贝了C盘下的User目录,这下还有机会解开可疑文件吗?
  • 提供了打包的 User 目录
  • 解法
    • 利用脚本清理一下空文件,方便人工查找需要的新信息
    1
    2
    @echo off
    for /f "tokens=*" %%i in ('dir/s/b/ad^|sort /r') do rd "%%i"
    • 发现 Dump_6e7e51d82aa230fe12d1fbc145da6441\User\link3\Desktop 里面有 flag.7zlog_data.txt
      • flag.7z:需要密码,或许得到了密码就能获得 flag
      • log_data.txt:显示没事,我都删掉了,之前的聊天记录都被我清干净了。除非他们在监控我输入,综合题目名称,猜测应该需要分析输入记录
    • 考虑输入法的记录,参考输入法取证:一种Windows8/10中文用户输入痕迹信息提取方法研究与实现
      • 与中文输入法相关的用户词库文件主要存储在 C:\Users\Administrator\AppData\Roaming\Microsoft\InputMethod\Chs
        • ChsPinyinlH.dat 文件记录着系统用户的中文字词输入信息
        • ChsPinyinUDL.dat文件记录着系统用户的中文短句输入信息

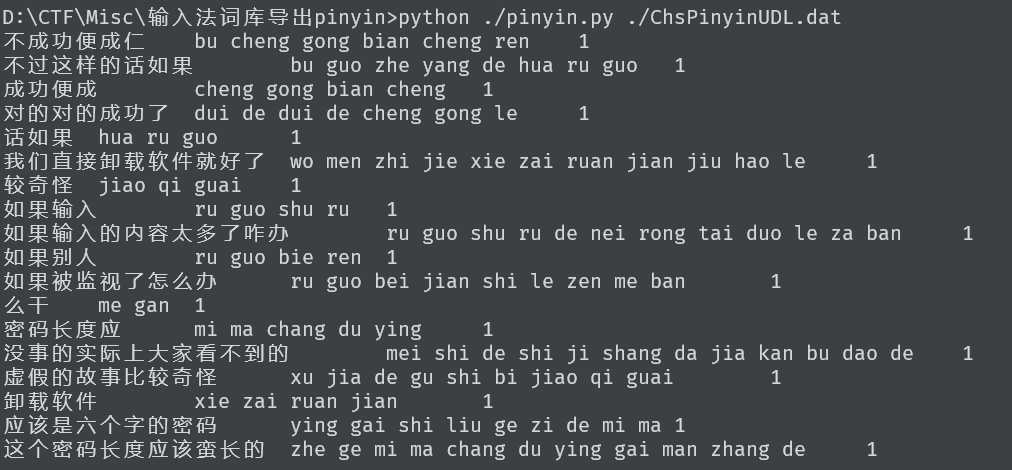

      • 利用 微软拼音自学习词库的导入导出算法中@HowcanoeWang的脚本,就能获得输入记录。
    • 密码是:有志者事竟成

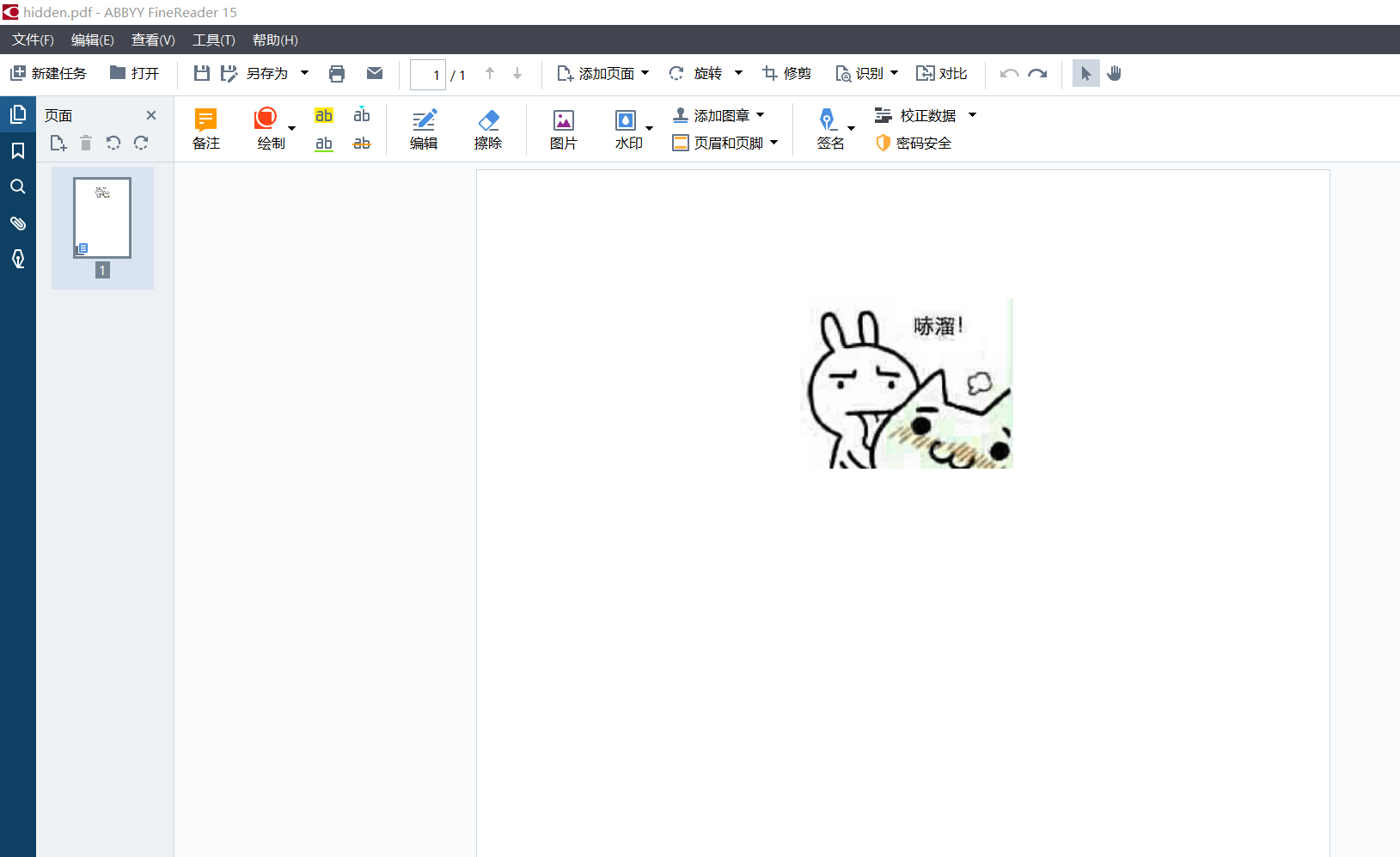

      • 解压得到一个 pdf 文件

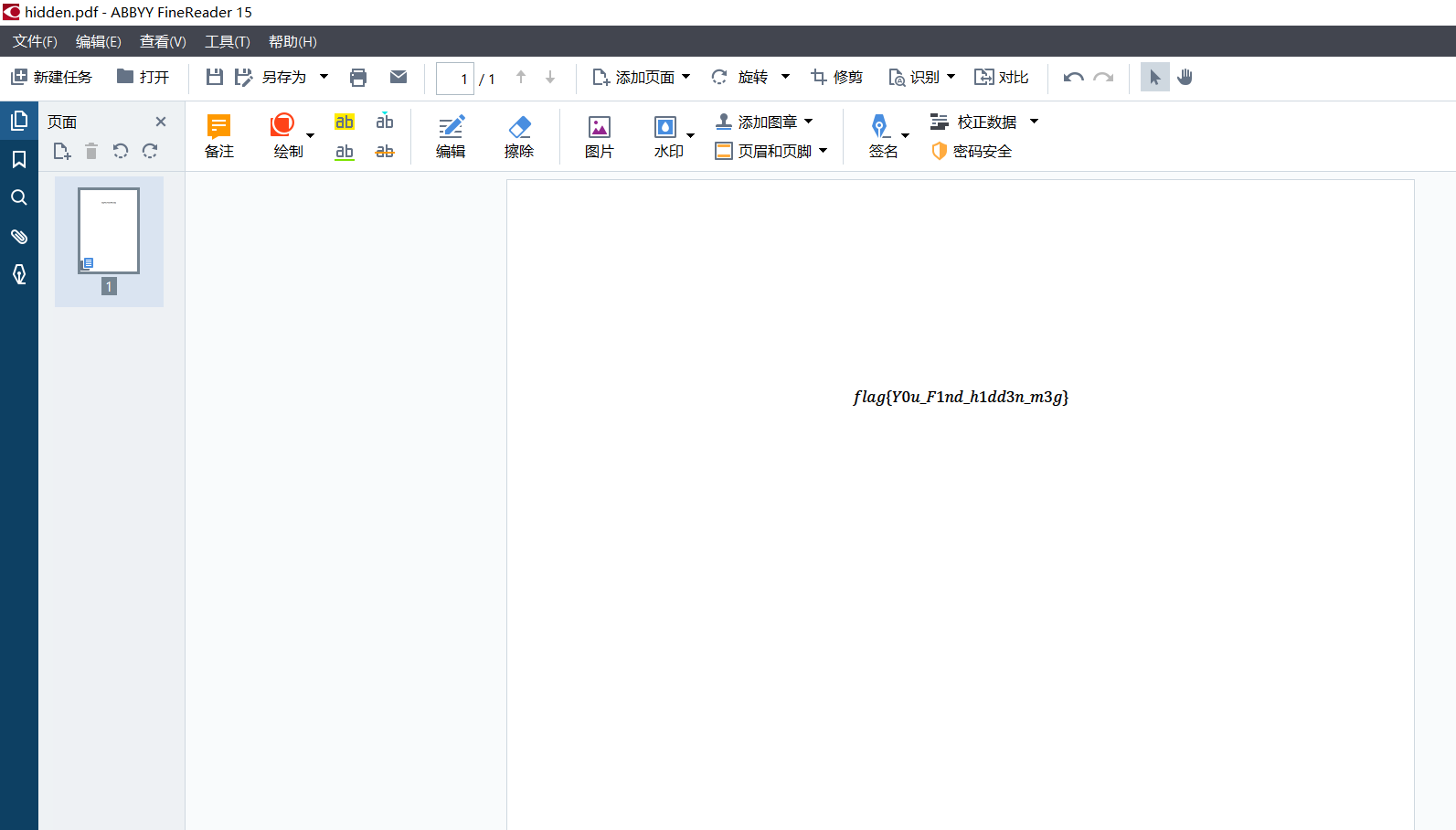

    • 删除图片,得到图片下的 flag

快用你那无敌的取证大师想想办法啊!

然而,我使用取证大师并没有分析出结果

我的心是冰冰的

  • 题目描述:似乎有信息被隐藏了。
  • 提供一个压缩包
  • 解法

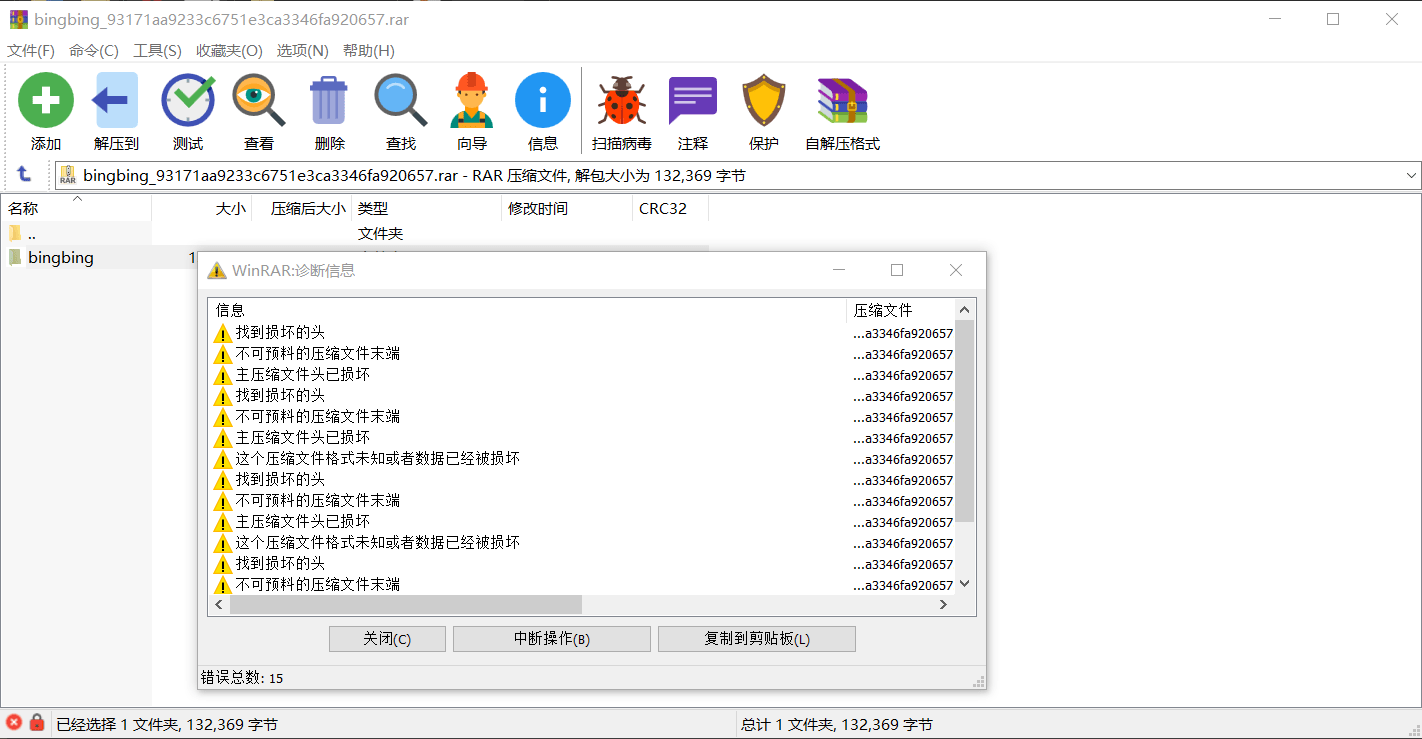

    • 用 WinRAR 打开就报错,解压还需要密码……应该是使用了伪加密——然而,一般伪加密不是对于ZIP而言的么?
      - 看了[L1near 师傅的官方 writeup](https://l1near.top/index.php/2021/03/15/97.html#comment-174) 后,需要修改 RAR 第 24 字节处(对应 `PASSWORD_ENCRYPTED`)从1改为0就可以正常打开文件了/把第24字节的后面一个4改成0也可以 - 然而,即便是使用了 010editor 的模板也没有解析处这里对应 `PASSWORD_ENCRYPTED`,看官方 writeup 应该是 RAR 版本问题 - 但是,或许正因为是版本问题,我在没有做任何伪加密修改时,同样能够正常解压缩
    • 解压得到 bingbing.jpgbingbing.zip
      • bingbing.zip 有密码,含有一个 bingbing.pcapng 文件
    • 根据官方 writeup,这是简单 FFT,其 payload 如下:(然而这道题改了,这样跑不出结果)
      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      import cv2 as cv
      import numpy as np
      import matplotlib.pyplot as plt
      img = cv.imread('FFT.png', 0) #直接读为灰度图像
      f = np.fft.fft2(img) #做频率变换
      fshift = np.fft.fftshift(f) #转移像素做幅度谱
      s1 = np.log(np.abs(fshift))#取绝对值:将复数变化成实数取对数的目的为了将数据变化到0-255
      plt.subplot(121)
      plt.imshow(img, 'gray')
      plt.title('original')
      plt.subplot(122)
      plt.imshow(s1,'gray')
      plt.title('center')
      plt.show()
      • 这里需要使用 Java 盲水印:
      1
      java -jar .\BlindWatermark.jar decode -c .\bingbing.jpg clue.jpg
      • Java 盲水印的工具:BlindWatermark
        ![](/img/post/2021 红明谷 Misc Writeup/bingbing.png)

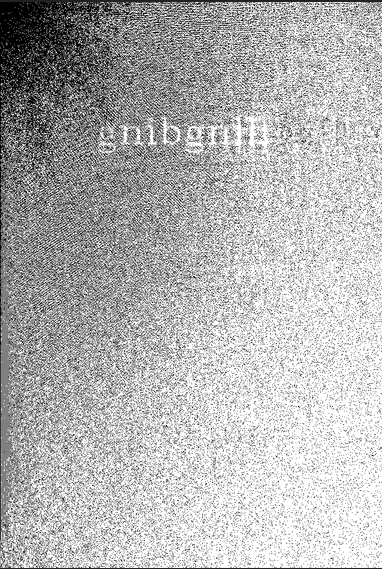

        ![](/img/post/2021 红明谷 Misc Writeup/blindwatermark.png)
    • 得到压缩包密码:gnibgnib

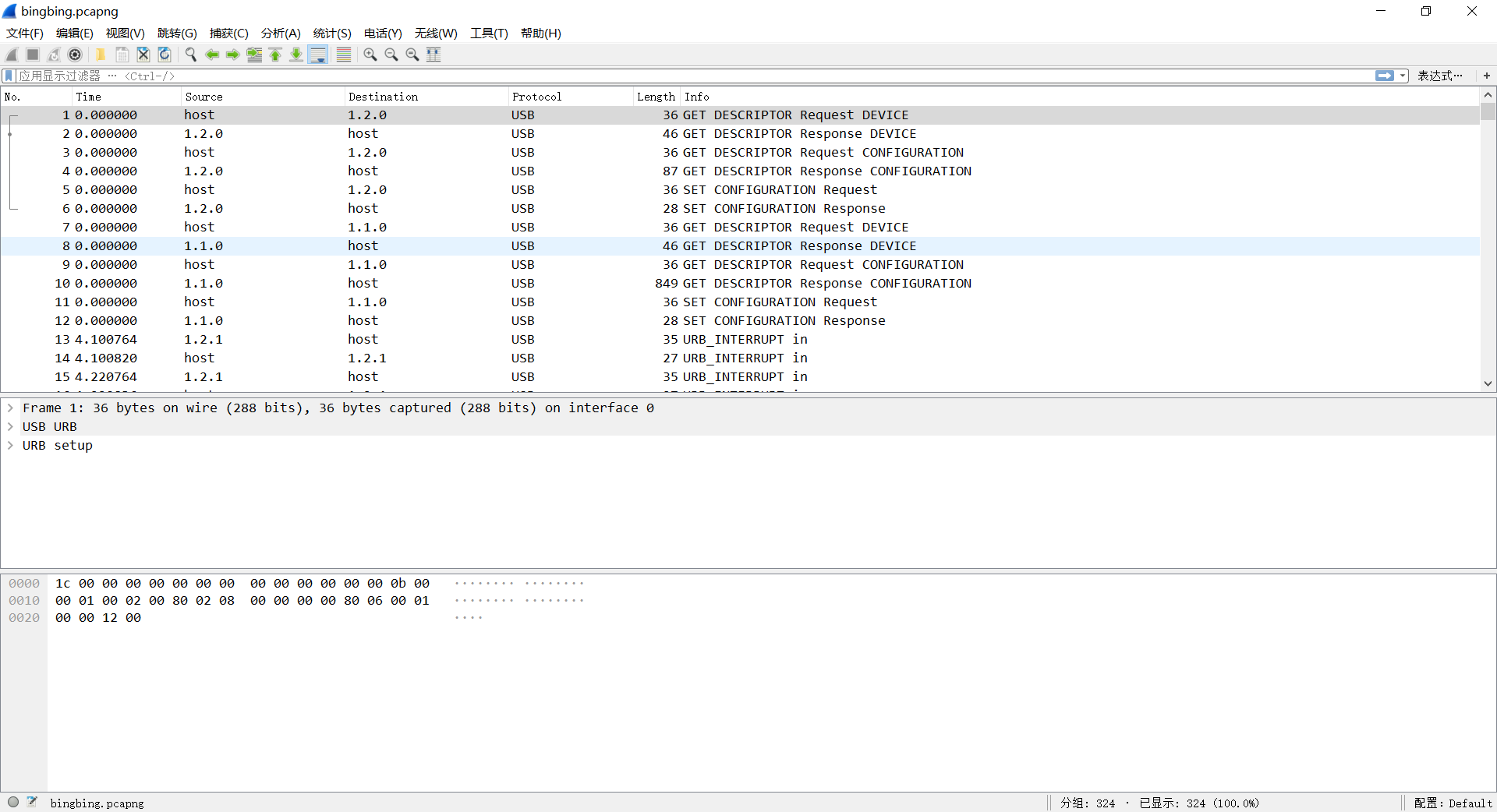

    • 打开压缩包,获得 bingbing.pcapng
    • USB键盘流量,使用 tshark + USB Keyboard Data Hacker 得到 666c61677b38663965643266393333656631346138643035323364303334396531323939637d
    • Hex 转 ascii 得到flag

歪比歪比

  • 题目描述:戴夫发送了一些信息给僵尸,但是被我截获到了。看看能从里边发现什么?好像是一个Surprise,你来翻译翻译?
  • 提供一个名为 data 的文件
    • 实际上是一个 pcap 包(利用Online TrID)
  • 解法

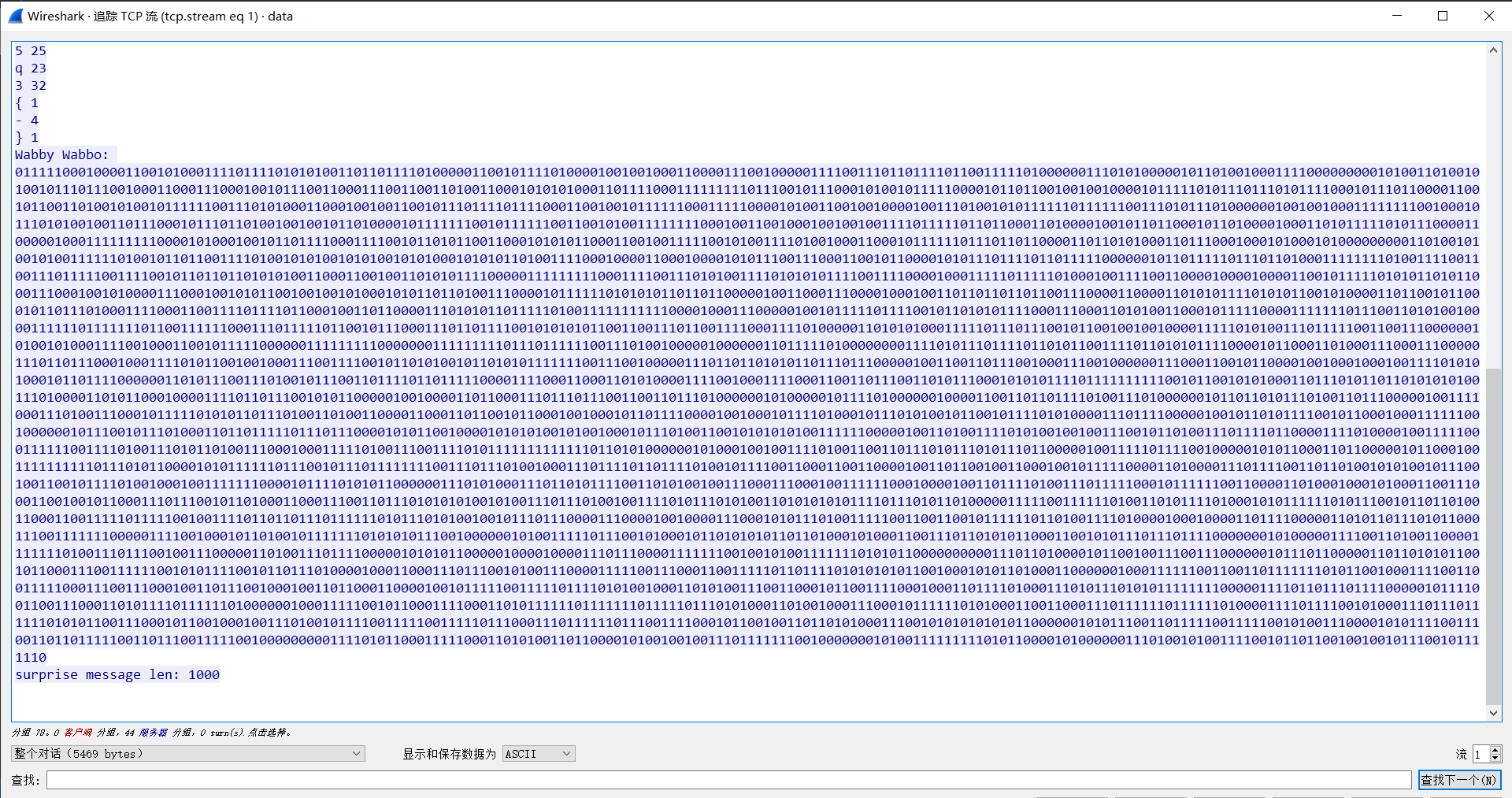

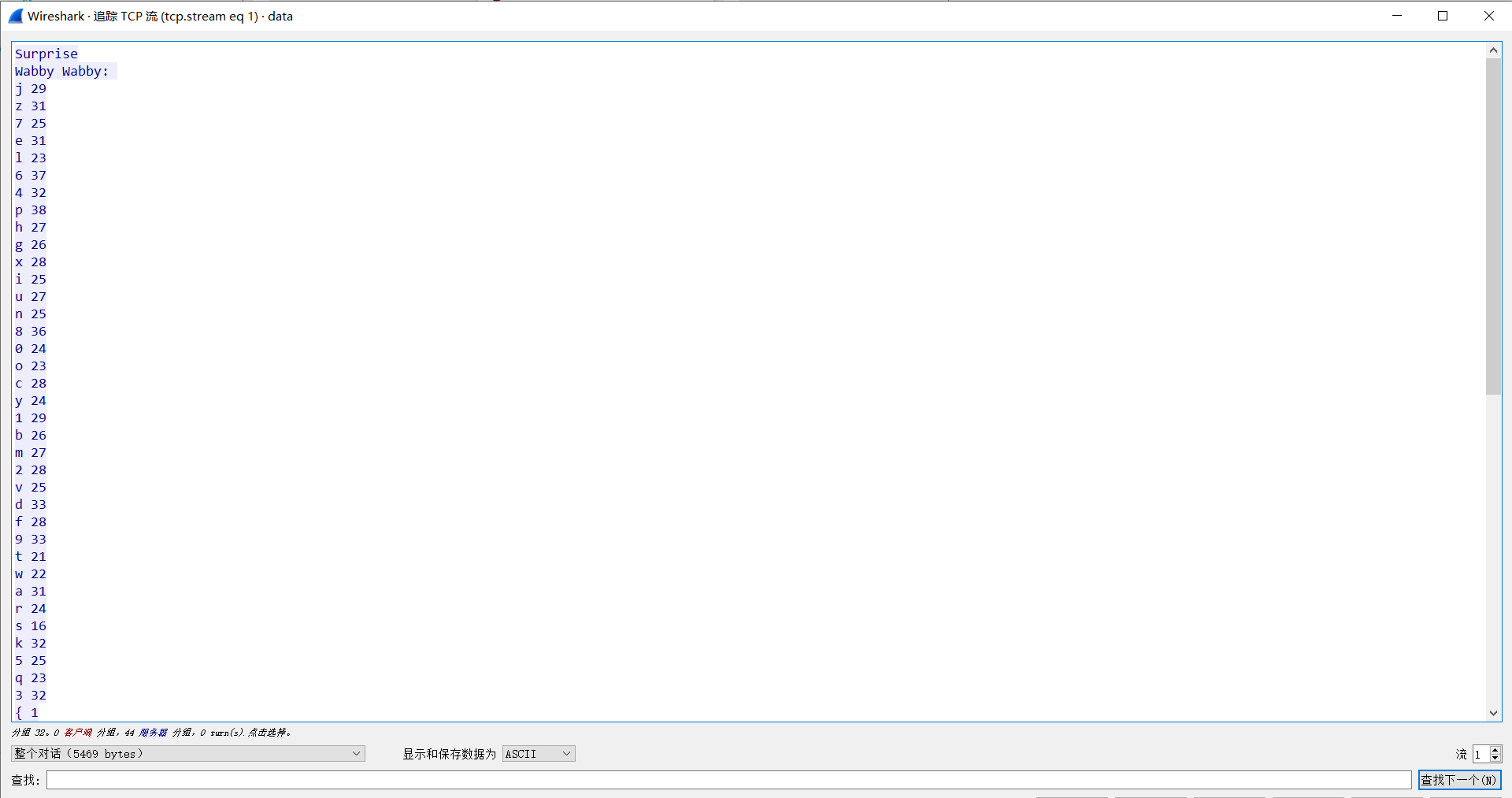

    • 追踪TCP流,得到如下文本
    • 明显是词频统计,哈夫曼编码
    • payload如下:
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    # 统计字符出现频率

    def countFrequency(text):
    chars = []
    chars_freqs = []
    for char in text:
    if char in chars:
    continue
    else:
    chars.append(char)
    chars_freqs.append((char, text.count(char)))
    return chars_freqs


    # 节点类

    class Node:
    def __init__(self, freq):
    self.left = None
    self.right = None
    self.father = None
    self.freq = freq

    def isLeft(self):
    return self.father.left == self


    # 根据freqs数组创建叶子节点

    def createNodes(freqs):
    return [Node(freq) for freq in freqs]


    # 构建Huffman树

    def createHuffmanTree(nodes):
    queue = nodes[:]
    while len(queue) > 1:
    queue.sort(key=lambda item: item.freq)
    node_left = queue.pop(0)
    node_right = queue.pop(0)
    node_father = Node(node_left.freq+node_right.freq)
    node_father.left = node_left
    node_father.right = node_right
    node_left.father = node_father
    node_right.father = node_father
    queue.append(node_father)
    queue[0].father = None
    return queue[0]


    # 由Huffman树得到Huffman编码
    # codes,nodes,chars_freqs的下标是一一对应的

    def encodeHuffman(nodes, root):
    codes = ['']*len(nodes)
    # 对于每一个节点,找其父节点,若其父节点是左侧节点,则编码前添加'0'
    # node_tmp即用于一层层向上寻找父节点
    for i in range(len(nodes)):
    node_tmp = nodes[i]
    while node_tmp != root:
    if node_tmp.isLeft():
    codes[i] = '0'+codes[i]
    else:
    codes[i] = '1'+codes[i]
    node_tmp = node_tmp.father
    return codes


    # 编码字符串

    def encodeStr(text, chars_freqs, codes):
    huffmanStr = ''
    # 对字符串中的每个字符,遍历chars_freqs,查看对应codes的下标
    for char in text:
    for i in range(len(codes)):
    if char == chars_freqs[i][0]:
    huffmanStr += codes[i]
    break
    return huffmanStr


    # 解码哈夫曼编码串

    def decodeStr(huffmanStr, chars_freqs, codes):
    orignStr = ''
    # 利用截断的方法,每次截取哈夫曼编码首部
    while huffmanStr != '':
    # 遍历codes,查看是否有codes在哈夫曼编码串首部
    for i in range(len(codes)):
    if codes[i] in huffmanStr and huffmanStr.index(codes[i]) == 0:
    orignStr += chars_freqs[i][0]
    huffmanStr = huffmanStr[len(codes[i]):]
    return orignStr


    if __name__ == '__main__':
    trash_array = {
    'j': 29,
    'z': 31,
    '7': 25,
    'e': 31,
    'l': 23,
    '6': 37,
    '4': 32,
    'p': 38,
    'h': 27,
    'g': 26,
    'x': 28,
    'i': 25,
    'u': 27,
    'n': 25,
    '8': 36,
    '0': 24,
    'o': 23,
    'c': 28,
    'y': 24,
    '1': 29,
    'b': 26,
    'm': 27,
    '2': 28,
    'v': 25,
    'd': 33,
    'f': 28,
    '9': 33,
    't': 21,
    'w': 22,
    'a': 31,
    'r': 24,
    's': 16,
    'k': 32,
    '5': 25,
    'q': 23,
    '3': 32,
    '{': 1,
    '-': 4,
    '}': 1,
    }
    tt = list(trash_array.items())
    chars_freqs = tt

    nodes = createNodes([item[1] for item in chars_freqs])
    root = createHuffmanTree(nodes)
    codes = encodeHuffman(nodes, root)

    huffmanStr = '0111110001000011001010001111011110101010011011011110100000110010111101000010010010001100001110010000011110011101101111011001111101000000111010100000101101001000111100000000010100110100101001011101110010001100011100010010111001100011100110011010011000101010100011011110001111111110111001011100010100101111100001011011001001001000010111110101110111010111100010111011000011001011001101001010010111111001110101000110001001001100101110111101111000110010010111111000111110000101001100100100001001110100101011111101111110011101011101000000100100100011111111001000101110101001001101110001011101101001001001011010000101111111001011111100110010100111111110001001100100010010010011110111110110110001101000010010110110001011010000100011010111110101110000110000010001111111110000101000100101101111000111100101101011001100010101011000110010011111001010011110100100011000101111110111011011000011011010100011011100010001010001010000000001101001010010100111111010010110110011110100101010010101001010100010101011010011110001000011000100001010111001110001100101100001010111011110110111110000001011011111011101101000111111110100111100110011101111100111100101101101101010100110001100100110101011110000011111111100011110011101010011110101010111100111100001000111110111110100010011110011000010000100001100101111101010110101100011100010010100001110001001010110010010010100010101101101001110000101111110101010110110110000010011000111000010001001101101101101100111000011000011010101111010101100101000011011001011000101101110100011110001100111101111011000100110110000111010101101111101001111111111100001000111000001001011111011110010110101011110001110001101010011000101111100001111111011100110101001000011111101111111011001111110001110111110110010111000111011011110010101010110011001110110011110001111010000011010101000111110111011100101100100100100001111101010011101111100110011100000010100101000111100100011001011111000000111111111000000011111111101110111111001110100100000100000011011111010000000011110101110111101101011001111011010101111000010110001101000111000111000001110110111000100011110101100100100011100111100101101010010110101011111110011100100000111011011010101101110111000001001100110111001000111001000000111000110010110000100100010001001111010101000101101111000000110101110011101001011100110111101101111100001111000110001101010000111100100011110001100110111001101011100010101011110111111111100101100101010001101110101101101010101001110100001101011000100001111011011100101011000001001000011011000111011101110011001101110100000010100000101111010000001000011001101101111010011101000000101101101011101001101110000010011110001110100111000101111101010110111010011010011000011000110110010110001001000101101111000010010001011110100010111010100101100101111010100001110111100000100101101011110010110001000111111001000000101110010111010001101101111101110111000010101100100001010101001010010001011101001100101010101001111110000010011010011110101001001001110010110100111011110110000111101000010011111000111111001111010011101011010011100010001111101001110011110101111111111111011010100000010100010010011110100110011011101011101011101100000100111110111100100000101011000110110000010110001001111111111011101011000010101111110111001011101111111100111011101001000111011110110111101001011110011000110011000010011011001001100010010111110000110100001110111100110110100101010010111001001100101111010010001001111111000010111101010110000001110101000111011010111100110101001001110001110001001111110001000010011011110100111011111000101111110011000011010001000101000110011100011001001011000111011100101101000110001110011011101010101001010011101110100100111101011101010011010101010111101110101101000001111100111111010011010111101000101011111101011100101101101001100011001111101111100100111101101101110111111010111010100100101110111000011100001001000011100010101110100111110011001100101111110110100111101000010001000011011110000011010110111010110001110011111110000011110010001011010010111111101010101110010000001010011111011100101000101101010101101101000101000110011101101010110001100101011101110111100000001010000011110011010011000011111110100111011100100111000001101001110111100000101010110000010000100001110111000011111110010010100111111101010110000000000111011010000101100100111001110000001011101100000110110101011001011000111001111110010101111001011011101000010001100011101110010100111000011111001110001100111110110111101010101011001000101011010001100000010001111110011001101111111010110010001111001100111110001110011100010011011100100010011011000110000100101111100111110111101010010001101010011100110001011001111000100011011110100011101011101010111111110000011110110111011110000010111100110011100011010111101111110100000010001111100101100011110001101011111101111111011111011101010001101001000111000101111110101000110011000111011111101111110100001111011110010100011101110111111010101100111000101100100010011101001011110011111001111101110001110111111011100111100010110010011011010100011100101010101010110000001010111001101111100111110010100111000010101111001110011011011111001101110011111001000000000111101011000111110001101010011011000010100100100111011111110010000000101001111111110101100001010000001110100101001111001011011001001001011100101111110'
    orignStr = decodeStr(huffmanStr, chars_freqs, codes)

    print('Decode result:' + orignStr)
    • 运行后得到flag
